Francais
  Soapstone



SOAPSTONE
MASONRY
HEATER

The heat by radiance reheats our body, but also the walls of the house, which contributes to the general comfort of a soapstone masonry heater. While using the heating by radiance, we restricts the heat difference between the ceiling and the floor, know for the heating by convection (traditional). This heating type reduces the dust accumulations in the house and the humidity in the air remains constant.


Wood masonry heater DE-500

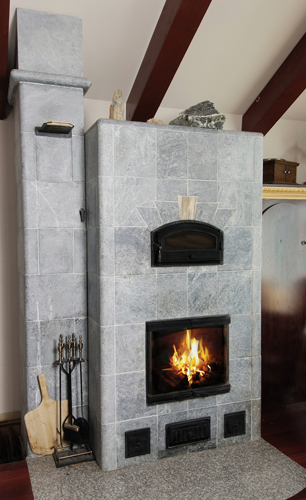

TECHNICAL DETAILS Masonry heater: DE-1000
Floor dimensions Front: 5'
  Depth: 2'
  Height: 8'
Space to heat: 1 800 p2
Radiation surface: 90 p2
Weight: 10 000 lbs
Outside temperature: 150 to 180 F
Maximum wood load: 60 lbs
Frequency of fire: 2 times per day
AVAILABLE OPTION

• Bench
• Warmer bench
• Oven
• Tiles parquet
• Chimney on the side, top or back
• Ornemental arc

OTHER REQUIREMENTS • Need an outdoor air intake
• Possibility to send the ashes int the foundation
• Possibility to put the oven on another side
The method of functioning of the massonry heater in soapstone is the following one : wood burn and releases heat that climbs in the center of the heater and takes back down on the sides which heats the rock. This one releases next this accumulated heat during 24h with 2 to 3 h of heating. The air enters by the small gate in the bottom and by the top of the window and the smoke is bring outside by the chimney.
